MODEL:UAMT80A-2P-2.2KW-380v-50Hz
INTERDUCTION
This motor is our star product, trusted by our partners. It's suitable for the glass deep processing industry.of the process edge
grinding,punching and chamfering. using labyrinth sealing protection, which requires high speed, it can ensure the waterproof
ability.
Machine features
- 100% products passed dynamic balance detection.
- Using famous bearings makes motor more reliable.
- Mature technology and public praise.
- The order quantity of motor can be specially customized.
- Special water proof design sealing structure, specialized for all kinds of working site.
Characteristics
- Rated voltage:380V~420V
- Rotational speed:2840r/min
- Shaft extension movement≤0.02
- motor vibration <0.5mm/s
- Temperature rise <60K
- Protection level: IP54
- Working Mode:S1
- Insulation Class:F
- Inaulation Class:IC411

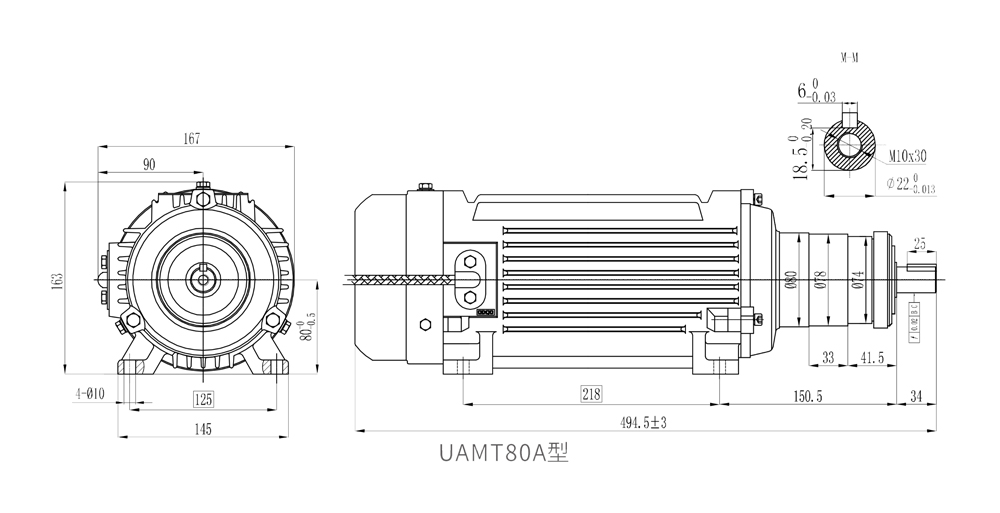

Drawings
Thase Phase UAMT Series motor(2P) Technical Specification
| Model | Rated Power (Kw) | Rated Voltage (V) | Rated Frequency (HZ) | Rated Current (A) | Rated Torch (N.m) | Rated Speed (rpm) | Efficiency (η) |
| UAMT80T-2P | 1.5 | 380 | 50 | 3.1 | 5.0 | 2830 | 81.9% |
| UAMT80T-2P | 1.75 | 380 | 50 | 3.6 | 5.9 | 2830 | 82.3% |
| UAMT80T-2P | 2.2 | 380 | 50 | 4.4 | 7.4 | 2840 | 84% |
| UAMT80T-2P | 3.0 | 380 | 50 | 5.8 | 10.0 | 2850 | 84.3% |
| UAMT80T-2P | 4.0 | 380 | 50 | 7.9 | 13.4 | 2840 | 84.0% |
| Notice:Grinding motor shaft direction should be confirmed with the manager. Be sure to follow the special instructions when installing. |

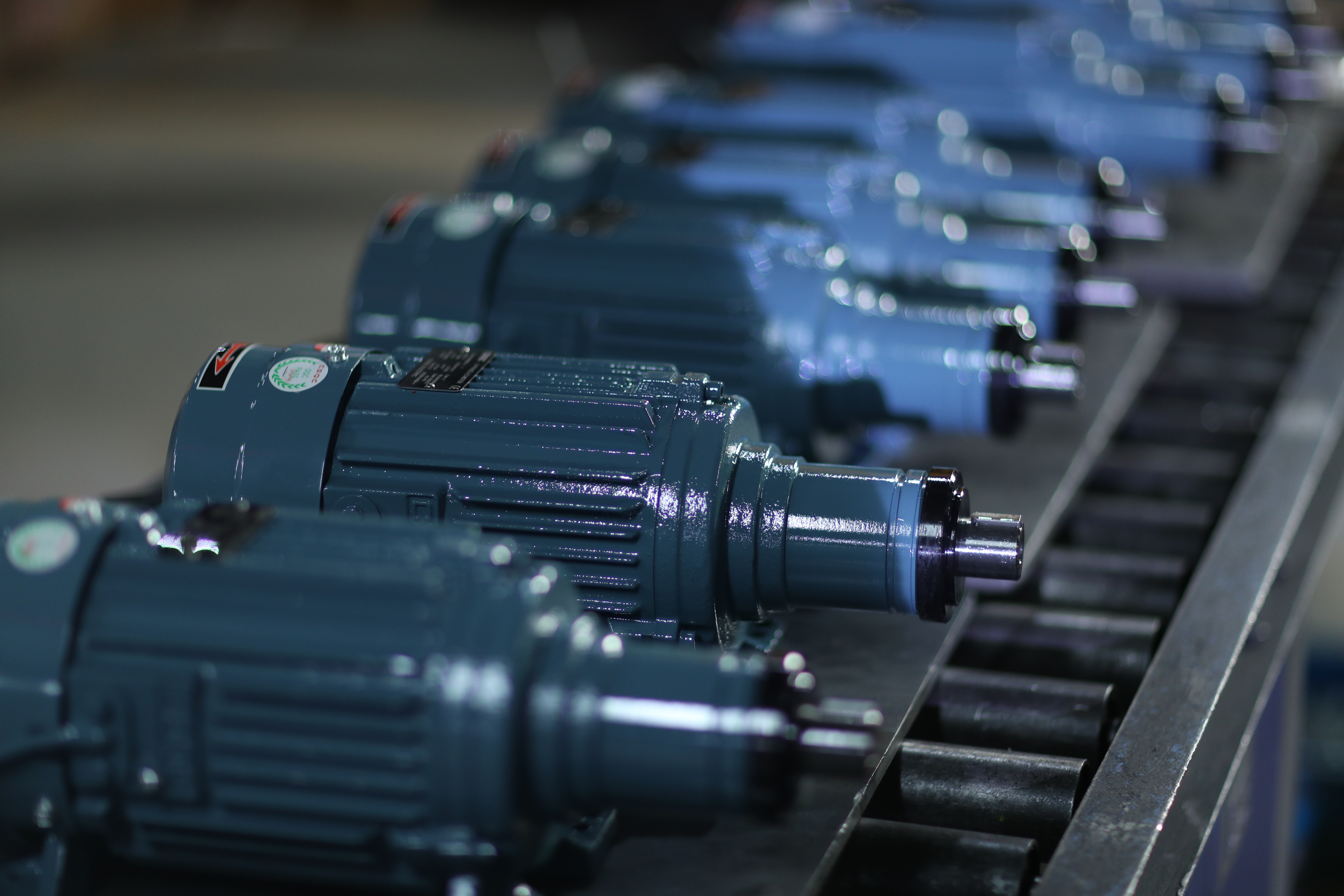

Motot Display
CE Certificates and Appendix
About Quality
Shanghai CDQC Electric Co.,ltd was established in 2005, covering an area of 20000 square meters with more than200 employees.
We have a professional production team and R&D team. a sreies of strict training and standards ensure product quality of our each
motor. At the same time, CDQC is producted by prodessional project managers through advanced responsibility system,focusing
on every datail for every excellent motor. our engineers are innovative and enthusastic, every year A large of money was invested
in research and improve our production.
